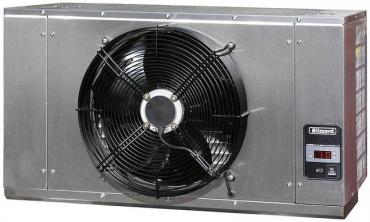

• Stainless steel indoor unit.
• De-ice thermostat.
• Twin fan speed control.
• Unit pre-charged with nitrogen.
• Low pressure winter start kit.
• High pressure switch.
• Heater kit fitted as standard.
• Unit is weather proof.
• Electronic isolator as standard (Supplied loose).
• Pull through fan gives 12 meter air throw and easy access for maintenance.
• Wide spaced cooling fins (Brewery specification) prevents yeast growth and build up of dirt.
• Unique fitting of evaporator eliminates build up of dirt behind unit.
• Electronic controller for low temps (+4°C).
• Refrigerant R407c.

• Ambient 27°C.

Options:
• BCS13U(30)ECA - Weight 42Kg.
• BCS17U(30)ECA - Weight 60Kg.
• BCS22U/1PH(30)ECA - Weight 64Kg.
• BCS22U/3PH - Weight 64Kg.

1 YEAR PARTS ONLY WARRANTY.

Lease to buy from £6.01 per week!

• Stainless steel indoor unit.
• De-ice thermostat.
• Twin fan speed control.
• Unit pre-charged with nitrogen.
• Low pressure winter start kit.
• High pressure switch.
• Heater kit fitted as standard.
• Unit is weather proof.
• Electronic isolator as standard (Supplied loose).
• Pull through fan gives 12 meter air throw and easy access for maintenance.
• Wide spaced cooling fins (Brewery specification) prevents yeast growth and build up of dirt.
• Unique fitting of evaporator eliminates build up of dirt behind unit.
• Does not require brackets for wall or ceiling mounting.
• Electronic controller for low temps (+4°C).
• Refrigerant R407c.

• Ambient 27°C.

Options:
• BCS13EHECA - Weight 28Kg.
• BCS17EHECA - Weight 28Kg.
• BCS22EHECA - Weight 41Kg.

1 YEAR PARTS ONLY WARRANTY.

Lease to buy from £6.21 per week!

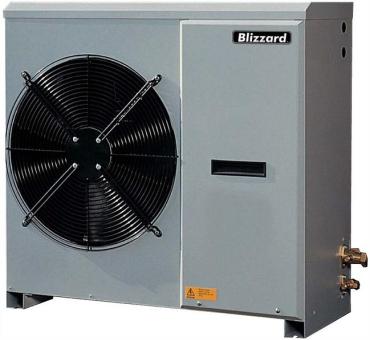

• Copeland scroll compressor.
• Single & three phase options.
• Three phase monitoring device.
• Fault indicator light.
• Compressor jacket.
• Axial condensor fan motor.
• Danfoss HP/LP pressure switch.
• Danfoss liquid sightglass.
• Danfoss filter drier.
• Liquid receiver.
• Low side gauge.
• High side gauge.
• Acoustic case lining.
• Low/High side service valves.
• Fan speed regulator.
• Mains isolater with integrated MCB.

Horse Power:

G200/M1 & G200/M3 - 2.0.
G250/M1 & G250/M3 - 2.5.
G300/M1 & G300/M3 - 3.0.
G350/M1 & G350/M3 - 3.5.
G400/M3 - 4.0.
G500/M3 - 5.0.
G600/M3 - 6.0.

Capacity (W):

G200/M1 & G200/M3 - 2950.
G250/M1 & G250/M3 - 3750.
G300/M1 & G300/M3 - 4550.
G350/M1 & G350/M3 - 5300.
G400/M3 - 6200.
G500/M3 - 7750.
G600/M3 - 9100.

Genfrost Scroll Condensing Unit spec sheet.

2 YEARS PARTS & 1 YEARS LABOUR OR 2 YEARS PARTS ONLY WARRANTY.

Lease to buy from £10.80 per week!

• R404a refrigerant.
• Medium temperature can run on R134A if required.
• Robust weather resistant housing.
• High reliable copeland scroll compressor.
• Liquid receiver with fusible plug.
• Adjustable HP/LP pressure safety switch.
• Liquid line with sight glass & filter drier.
• IP54 rated control panel with isolator.
• Noise data tested to ISO 3774-2 Standard.
• Oil separator & check valve for low temp models.
• Anti-corrosion blue fins for improved condensor effciency.
• Polyurethane foam insulation for improved noise reduction.
• Externally mounted service valves for easy isolation.
• Mains isolater with integrated MCB.
• Fan speed controller.
• Crankcase heater.

Horse Power:

JS200/M1 & JS200/M3 - 2.0
JS250/M1 & JS250/M3 - 2.5
JS300/M1 & JS300/M3 - 3.0
JS350/M1 & JS350/M3 - 3.5
JS400/M1 & JS400/M3 - 4.0
JS500/M3 - 5.0
JS600/M3 - 5.0
JS680/M3 - 6.8

Capacity (W):

JS200/M1 & JS200/M3 - 3400
JS250/M1 & JS250/M3 - 3900
JS300/M1 & JS300/M3 - 4800
JS350/M1 & JS350/M3 - 5900
JS400/M1 & JS400/M3 - 6690
JS500/M3 - 8050.
JS600/M3 - 9150.
JS680/M3 - 9850.

Fusion Scroll Low Condensing Unit spec sheet.

2 YEARS PARTS & 1 YEARS LABOUR OR 2 YEARS PARTS ONLY WARRANTY.

Lease to buy from £14.40 per week!

• R404a refrigerant.
• Medium temperature can run on R134A if required.
• Robust weather resistant housing.
• High reliable copeland scroll compressor.
• Liquid receiver with fusible plug.
• Adjustable HP/LP pressure safety switch.
• Liquid line with sight glass & filter drier.
• IP54 rated control panel with isolator.
• Noise data tested to ISO 3774-2 Standard.
• Oil separator & check valve for low temp models.
• Anti-corrosion blue fins for improved condensor effciency.
• Polyurethane foam insulation for improved noise reduction.
• Externally mounted service valves for easy isolation.
• Mains isolater with integrated MCB.
• Fan speed controller.
• Crankcase heater.

Horse Power:

JS200/L3 - 2.0
JS300/L3 - 3.0
JS400/L3 - 4.0
JS500/L3 - 5.0
JS600/L3 - 6.0

Capacity (W):

JS200/L3 - 1000
JS300/L3 - 1300
JS400/L3 - 1900
JS500/L3 - 2300
JS600/L3 - 2800

Fusion Scroll Low Noise & Temp Condensing Unit spec sheet.

2 YEARS PARTS & 1 YEARS LABOUR OR 2 YEARS PARTS ONLY WARRANTY.

Lease to buy from £20.92 per week!
