Italian build quality at a fantastic low price.

500mm basket.
Reliable, high specification mechanical operation.
AISI304 stainless steel.
Automatic, adjustable detergent & rinse aid pumps.
Easy to install.
Hot or Cold fill.
4 Min cycle.
320mm clearance.
Available with or without drain pump.

Dimensions: W590 x D600 x H820mm.

Power: 2.2kW.

We strongly recommend the use of a water softener in hard water areas. If in doubt please call or email we will be glad to help.

Optional Stands.
Low Stand (Height 500mm)
Tall Stand (Height 650mm)

SUMMER SALE! - SAVE £200.00!

NEXT WORKING DAY DELIVERY.

Price: £1049.00

Outstanding Value 500mm Basket Commercial Dishwasher

Why choose CaterWash

500mm basket.
Fully KIWA approved air gap - break tank fitted as standard.
Reliable, high specification mechanical operation.
High quality AISI304 stainless steel construction.
Automatic detergent & rinse aid pumps.
2 minute cycle.
30 racks per hour.
Drain outlet 55mm from bottom.
320mm clearance.

6kW Hard Wired. Downratable to 3kW plug in.

Dimensions: W590 x D600 x H820mm.

We strongly recommend the use of a water softener in hard water areas. If in doubt please call or email we will be glad to help.

Buy from only £10.75 per week.

Click here for a view inside
Click here for a view behind the front panel

Available with gravity waste(CK50 CK0073) or with drain pump(CK50PS CK0074).

Optional Stands.
Low Stand (Height 500mm)
Tall Stand (Height 650mm)

NEXT WORKING DAY DELIVERY.

SUMMER SALE! - SAVE £250.00!

SAVE £400.00!!

Features & Specification:

Why choose CaterWash?

Breaktank fitted as standard - fully KIWA approved "Type A" air gap.
Reliable, high specification mechanical operation.
High quality AISI304 stainless steel construction.
Automatic detergent & rinse aid pumps.
2 minute cycle.
30 racks per hour.
Drain outlet 420mm from bottom.
320mm clearance.
Optional 3kw plug in (hot fill) or 6kw supply.

Click here for a view behind the front panel
The wash tank
The wash arms
Coded wiring block
Accessories
Control Panel
Rear

Dimensions:

W695 x D795 (950) x H1460mm (1930).
Width with handle (630 without).
Tank height from floor: 570 - 630mm.
Leg adjustment: 60mm.

Click HERE for schematic showing detailed dimensions.

Tabling:

The CK720 is available as a stand alone machine or choose from a range of in and out tables including.

Single in/out table*.
Double in/out table*.
Double table with sink*.

*Tables are available with a deep rear ledge – see HERE – please call or email for prices.

Our standard tabling package offers great value and flexibility. Click HERE to view detailed dimensions and layout options.

The package includes…

In table (W1200 x D655 x H850mm)
Holds 2 baskets, includes Splashback & Pre-wash sink(Bowl size: W500 x D400 x H300mm).

Pre-Rinse Single Feed Spray Arm with Tap†.

Out table (W600 x D600 x H850mm) holds one basket.

CATERKWIK can fabricate bespoke tabling to meet your specific needs-please call or email for a competitive price.

† We have a huge range of pre-rinse arms and associated options available please call or email for details.

We strongly recommend the use of a water softener in hard water areas. If in doubt please call or email we will be glad to help.

NEXT WORKING DAY DELIVERY.

Buy from only £18.89 per week.

Price: £2099.00

A versatile & economical front loading dishwasher capable of washing up to 40 racks per hour (160 covers per hour).

Choice of 90 or 180 second wash/rinse programmes.
Simple to use electronic controls.
Powerful 0.6kW pump delivers total wash coverage via separate upper & lower wash & rinse arms.
Low volume 10.8 litre wash tank & efficient 2.5 litre rinse provide low running costs.
2 stage interlocked strainer system removes debris & helps to protect the wash pump.
Automatic drain down & self flushing cycle.
Multi phasing power loading - can be connected to varying electrical installation specifications.

Built in drain & rinse pumps.
Class AA Air Gap.
Integral detergent & rinse aid dosing.
Integral water softener.
1 x plate rack, 1 x open rack & 1 x cutlery basket.

Dimensions: W600 x D600 x H830mm (+80).

Power: 5.6kW, 1 x 25A switchable to 7.7kW, 3 x 16A.

1 YEAR PARTS & LABOUR WARRANTY.

Price: £2134.00

SPECIAL OFFER PRICE.
An efficient, economical & powerful pass through machine suitable for any busy kitchen.

Adaptable for either straight through or corner operations ensuring it will meet all your your operational requirements.

The hood mounted electronic soft touch control panel offers additional features (glass, dish, pans etc) & a digital read out of operating temperatures.

Choice of four wash cycles, 60, 120, 180 seconds or continuous.

Up to 50 racks (200 covers) per hour.
Items up to 420mm tall are easily accommodated.
Counterbalanced hood.
Easy strip down for effective cleaning.
Break tank, booster pump, detergent & rinse aid injectors fitted as standard.

Tabling available.

Optional drain pump.

Switchable between 1ph & 3ph.

We strongly recommend the use of a water softener in hard water areas. If in doubt please call or email we will be glad to help.

1 YEAR PARTS & LABOUR WARRANTY.

Download Phase Switch wmv here
DIP switch download wmv here
Drain Pump Set-Up Download wmv here
Set Up PPT Slides here

Price: £2293.00

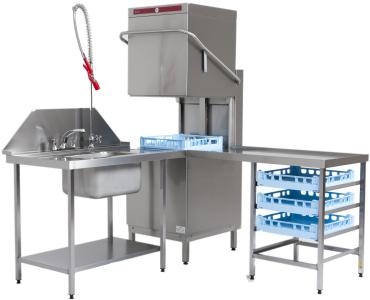

A powerful Hood Type Dishwasher capable of washing up to 60 racks per hour.

Choice of 60, 90 or 120 second wash/rinse programmes.
Corner or straight through operation.
Simple to use electronic controls.
Powerful 0.73kW pump delivers total wash coverage via separate upper & lower wash & rinse arms.
Low volume 21 litre wash tank & efficient 2.5 litre rinse provide low running costs.
2 stage interlocked strainer system removes debris & helps to protect the wash pump.
400mm hood opening height - allows double racking of cups, saucers etc & easy loading of trays.
Multi phasing power loading - can be connected to varying electrical installation specifications.

Built in drain & rinse pumps.
Class AA Air Gap.
Integral detergent & rinse aid dosing.
Integral water softener.
1 x plate rack, 1 x open rack & 1 x cutlery basket.

Dimensions: W635 x D740 x H1517mm (1997).

Power: 7kW, 3 x 16A switchable to 4.9kW, 1 x 25A.

Pictured with optional accessories.
Please Click here for tabling options

1 YEAR PARTS & LABOUR WARRANTY.

Price: £3211.00

EASE OF OPERATION:

SMARTRONIC single button control with colour coded status sequence. Simple to use & understand.
Easy to clean wash tank & chamber with smooth, rounded corners & polished interior.
Only 6 removable items for cleaning.
Automatic self flushing drain cycle on machine shut down.
Full width hydraulically damped counterbalanced door.

CONSISTENTLY OUTSTANDING WASH RESULTS:

INTENSIV - 3 stage wash process incorporates a pre-wash function which removes 20-40% more food soil.
ECOTHERM - Maintains wash temperature above 63°C for optimum detergent performance.
VECTOR Wide Angle Wash Jets - Advanced design delivers a powerful, searching wash action eliminating any “masked” areas.
X-CHANGE - Cycle can be activated on demand to allow the wash water to be completely replenished during the wash cycle.
Interlocked strainer ensures correct location & operation of filter system.
Wash pump soft start feature protects ware & reduces shock to components.

ENERGY SAVING FEATURES:

ACCURINSE uses just 2.5 litres of fresh water per cycle saving up to 30% on water, energy, detergent & rinse aid costs.
GENIUS X2 removes 20-40% more debris from the wash water & saves up to 40% on detergent usage.
Wash tank capacity of just 10.8 litres, saves on water & energy.

Includes plate rack, cup rack & cutlery basket.

Dimensions: W600 x D600 x H820 - 900mm.
Power: 5.6kW, 3 phase - 7.7kW.
Max Cycles Per Hour: 20.
Rack Size: 500 x 500mm.
Weight: 65kg.

1 YEAR PARTS & LABOUR WARRANTY.

Additional specifications.

Price: POA

EASE OF OPERATION:

SMARTRONIC single button control with colour coded status sequence. Simple to use & understand.
Easy to clean wash tank & chamber with smooth, rounded corners & polished interior.
Only 6 removable items for cleaning.
Automatic self flushing drain cycle on machine shut down.
Full width hydraulically damped counterbalanced door.

CONSISTENTLY OUTSTANDING WASH RESULTS:

INTENSIV - 3 stage wash process incorporates a pre-wash function which removes 20-40% more food soil.
ECOTHERM - Maintains wash temperature above 63°C for optimum detergent performance.
VECTOR Wide Angle Wash Jets - Advanced design delivers a powerful, searching wash action eliminating any “masked” areas.
X-CHANGE - Cycle can be activated on demand to allow the wash water to be completely replenished during the wash cycle.
Interlocked strainer ensures correct location & operation of filter system.
Wash pump soft start feature protects ware & reduces shock to components.

ENERGY SAVING FEATURES:

ACCURINSE uses just 2.5 litres of fresh water per cycle saving up to 30% on water, energy, detergent & rinse aid costs.
GENIUS X2 removes 20-40% more debris from the wash water & saves up to 40% on detergent usage.
Wash tank capacity of just 10.8 litres, saves on water & energy.

Includes plate rack, cup rack & cutlery basket.

Dimensions: W600 x D600 x H820 - 900mm.
Power: 5.6kW, 3 phase - 7.7kW.
Max Cycles Per Hour: 40.
Rack Size: 500 x 500mm.
Weight: 65kg.

1 YEAR PARTS & LABOUR WARRANTY.

Additional specifications.

Price: POA

EASE OF OPERATION:

SMARTRONIC single button control with colour coded status sequence. Simple to use & understand.
Easy to clean wash tank & chamber with smooth, rounded corners & polished interior.
Only 6 removable items for cleaning.
Automatic self flushing drain cycle on machine shut down.
Full width hydraulically damped counterbalanced door.

CONSISTENTLY OUTSTANDING WASH RESULTS:

INTENSIV - 3 stage wash process incorporates a pre-wash function which removes 20-40% more food soil.
ECOTHERM - Maintains wash temperature above 63°C for optimum detergent performance.
VECTOR Wide Angle Wash Jets - Advanced design delivers a powerful, searching wash action eliminating any “masked” areas.
X-CHANGE - Cycle can be activated on demand to allow the wash water to be completely replenished during the wash cycle.
Interlocked strainer ensures correct location & operation of filter system.
Wash pump soft start feature protects ware & reduces shock to components.

ENERGY SAVING FEATURES:

ACCURINSE uses just 2.5 litres of fresh water per cycle saving up to 30% on water, energy, detergent & rinse aid costs.
GENIUS X2 removes 20-40% more debris from the wash water & saves up to 40% on detergent usage.
Wash tank capacity of just 10.8 litres, saves on water & energy.

Includes plate rack, cup rack & cutlery basket.

Dimensions: W600 x D600 x H820 - 900mm.
Power: 5.6kW, 3 phase - 7.7kW.
Max Cycles Per Hour: 40.
Rack Size: 500 x 500mm.
Weight: 65kg.

1 YEAR PARTS & LABOUR WARRANTY.

Additional specifications.

Price: POA

The FXTDS delivers spotlessly clean results at temperature that exceed the guidelines for Thermal Disinfection using unique pressureless steam technology.

STANDARD FEATURES:

Fully automatic integral water softener - prevents scale deposits in the steam booster & wash chamber.
INTENSIV 3 stage washing process.
GENIUS X2 active filter system provides prewash, wash & rinsing functions!
ECOTHERM wash tank heating - guaranteed wash temp over 63°C for optimised washing efficiency.
ACCURINSE low volume cold rinse - just 2.8 litres per cycle combine with compact 10.8litre wash tank reduces operating costs by up to 30%!
SMARTRONIC control - single button operation with colour cycle status indication & low salt warning.
Strainer/ filter recognition - prevents operation if filters are not in place.
Integral drain pump & integral rinse booster pump for ease of installation.
Accurate detergent dosing system.
Large salt reservoir - up to 500 cycles @ 10odH hardness.
Automatic self flush when draining.
Easily removable, one piece, anti-block wash & rinse arms.
Fluid category 5 Class 'AB' type air gap.
Flexible hoses for connection to services.

EASY TO USE:

A dishwasher should be easy to use & customers tell us that having simple, understandable controls is of key importance - FXTDS delivers on both counts by offering:

Single button activation for filling, cycle start & draining.
Colour coded sequence gives clear indication of machine & cycle status.
Additional functions e.g - cycle selection & temperature indication can be accessed as required.
Less risk of incorrect operation & misuse.
Cycle status indicator.

EASY TO CLEAN:

Rounded corners & minimal components eliminate dirt traps.
Prior to shut down an automatic flushing drain cycle rinses the machine.
Pump intake protection prevents ingress of foreign objects.

Includes built-in softener, plate rack, cup rack & cutlery rack.

Dimensions: W600 x D600 x H820mm.
Power: 5.6kW, 3 phase - 7.7kW.
Max Cycles Per Hour: 7.
Rack Size: 500 x 500mm.
Weight: 65kg.

1 YEAR PARTS & LABOUR WARRANTY.

Additional specifications.

Price: POA

EASE OF OPERATION:

SMARTRONIC single button control with unique colour coded sequence & “countdown” indication of cycle status. Simple to use & understand.
COMPLETE hygiene programme thoroughly cleans wash chamber & wash system.
Easy to clean wash tank & chamber with smooth, rounded corners & polished interior.
Only 6 removable items for cleaning.
Automatic self flushing drain cycle on machine shut down.
Audible indication of machine status, i.e - cycle complete, low salt, low chemical.
Full width hydraulically damped counterbalanced door.

CONSISTENTLY OUTSTANDING WASH RESULTS:

INTENSIV4 - 4 stage wash process featuring pre-wash, wash, rinse & a unique drying cycle.
ECOTHERM - Maintains wash temperature above 63°C for optimum detergent performance.
VECTOR - Wide Angle Wash Jets - Advanced design delivers a powerful, searching wash action eliminating any “masked” areas.
Selectable extended rinse cycle (4 litres) for tall or stemmed glassware.
Interlocked strainer ensures correct location & operation of filter system.
Wash pump soft start feature protects ware & reduces shock to components.

ADVANCED FXP FEATURES:

Unique integral dryer provides rapid & effective drying of ware in just 3 minutes. Eliminates steam escape when door is opened.
Single button indicates progress of cycle.
Handle illuminates in addition to single button to show machine status.
The hygiene programme using Hobart INTENSIV tablets removes starch, tannin & lime deposits & leaves the machine smelling clean & fresh.
Integral 1 litre rinse aid container with convenient drawer access & low level sensor.

Includes plate rack, cup rack & cutlery rack.

Dimensions: W600 x D600 x H820 - 900mm.
Power: 5.6kW, 3 phase - 7.7kW.
Max Cycles Per Hour: 40.
Rack Size: 500 x 500mm.
Weight: 65kg.

1 YEAR PARTS & LABOUR WARRANTY.

Additional specifications.

Price: POA

CAPACITY:

Up to 60 racks per hour.
Choice of 3 wash/rinse programmes - 60, 90 & 120 seconds.
For corner or straight through operation.

EASE OF OPERATION:

Simple to use SMARTRONIC hood mounted controls.
Just 6 components to remove for cleaning.
Easy to remove rack track.
Automatic self flushing drain cycle on machine shut down.

CONSISTENTLY OUTSTANDING WASH RESULTS:

INTENSIV wash system delivers outstanding results & significantly reduces running costs.
Choice of cycles to match degree of soiling: 60, 90 & 120 seconds.
Consistent wash temperature with ECOTHERM heating.
Interlocked strainer.
Accurate integral detergent & rinsing dosing equipment.

ENERGY SAVING FEATURES:

Genius X2 removes 20-40% more debris from the wash water & saves up to 40% on detergent usage. Wash tank capacity of just 10.8 litres, saves on water & energy.
Fully insulated 4 sided hood.
440mm high hood opening, high enough to allow double racking.
ACCURINSE uses just 2.5ltr per rack.
Drain heat recovery option

Includes 3 plate racks, 2 cup racks & 1 cutlery basket.

Dimensions: W635 x D742 x H1510mm.
Power: 7kW - 3 phase, 4.9kW - single phase.
Max Cycles Per Hour: 60.
Weight: 105kg.

1 YEAR PARTS & LABOUR WARRANTY.

Price: POA

Same features as AMX-16 with In-built softener.

1 YEAR PARTS & LABOUR WARRANTY.

Price: POA

CAPACITY:

Up to 70 racks per hour.
Choice of 4 wash/rinse programmes - 52, 75 & 90 seconds plus continuous.
For corner or straight through operation.

EASE OF OPERATION:

Simple to use SMARTRONIC hood mounted controls.
Just 6 components to remove for cleaning.
Easy to remove rack track.
Automatic self flushing drain cycle on machine shut down.

CONSISTENTLY OUTSTANDING WASH RESULTS:

INTENSIV wash system delivers outstanding results & significantly reduces running costs.
Choice of cycles to match degree of soiling: 52, 75 & 120 seconds.
Consistent wash temperature with ECOTHERM heating.
Interlocked strainer.
Accurate integral detergent & rinsing dosing equipment.

ENERGY SAVING FEATURES:

Genius X2 removes 20-40% more debris from the wash water & saves up to 40% on detergent usage. Wash tank capacity of just 10.8 litres, saves on water & energy.
Fully insulated 4 sided hood.
440mm high hood opening, high enough to allow double racking.
ACCURINSE uses just 2.5ltr per rack.
Drain heat recovery option

Includes 3 plate racks, 2 cup racks & 1 cutlery basket.

Dimensions: W635 x D742 x H1510mm.
Power: 15.9kW or 9.7kW or 7.3kW (drain heat recovery) - 3 phase.
Max Cycles Per Hour: 70.
Weight: 125kg.

1 YEAR PARTS & LABOUR WARRANTY.

Price: POA

Same features as AMXX-31 with In-built softener.

1 YEAR PARTS & LABOUR WARRANTY.

Price: POA

CAPACITY:

Up to 70 racks per hour.
Choice of 4 wash/rinse programmes.
For corner or straight through operation.

EASE OF OPERATION:

Simple to use SMARTRONIC hood mounted controls.
Just 6 components to remove for cleaning.
Easy to remove rack track.
Automatic self flushing drain cycle on machine shut down.

CONSISTENTLY OUTSTANDING WASH RESULTS:

INTENSIV wash system delivers outstanding results & significantly reduces running costs.
Choice of cycles to match degree of soiling: 52, 90 & 240 seconds.
Consistent wash temperature with ECOTHERM heating.
Interlocked strainer.
Accurate integral detergent & rinsing dosing equipment.
In addition, the AUXX offers a unique 'Turbo' wash power option, selectable on any cycle for washing heavily soiled objects including containers & utensils.

ENERGY SAVING FEATURES:

Genius X2 removes 20-40% more debris from the wash water & saves up to 40% on detergent usage. Wash tank capacity of just 10.8 litres, saves on water & energy.
Fully insulated 4 sided hood.
440mm high hood opening, high enough to allow double racking.
ACCURINSE uses just 2.5ltr per rack.
Drain heat recovery option

Includes 3 plate racks, 2 cup racks & 1 cutlery basket.

Dimensions: W635 x D742 x H1510mm.
Power: 17.1kW or 10.9kW or 8.5kW (drain heat recovery) - 3 phase.
Max Cycles Per Hour: 70.
Weight: 135kg.

1 YEAR PARTS & LABOUR WARRANTY.

Price: POA

Same features as AUXX-31 with In-built softener.

1 YEAR PARTS & LABOUR WARRANTY.

Price: POA

Single rack stainless steel.
650 x 630 x 900mm.
£275 each or £500 for two.

Price: £275.00

Double rack side tabling for Hobart passthrough dishwasher.
1180 x 630 x 900mm.
£330.00 each , £600.00 pair.

Price: £330.00

Double rack stainless steel side table with sink.
Available to fit to left or right hand side of machine.
Size: 1150 x 700 x 900mm.

Price: £654.50

Following many years testing a huge range of detergents & working directly with our customers we tracked down the best at source & badged it ourselves.
Specially formulated for the demanding commercial environment our ultra concentrated detergents provide outstanding results at a competitive price.

Available:

Glasswash Detergent.
Dishwash Detergent.
Glasswash Rinse Aid.
Dishwash Rinse Aid.

Supplied in boxes of 4 x 5l tubs.

NEXT WORKING DAY DELIVERY.

Price: £29.99

Universal Equipment Stand.

Perfect for Glasswashers & Dishwashers.

Adjustable width & depth. Range 390 -640mm.

Adjustable feet.
Supplied flat packed.
Easy to fit.
2 Heights available.

CK0026 - 500mm high.
CK0041 - 650mm high.

Legs can be cut to fit.

Price: £55.00
