HEAVY DUTY, ROBUST, HYGIENIC & RELIABLE...Perfect for the most demanding applications

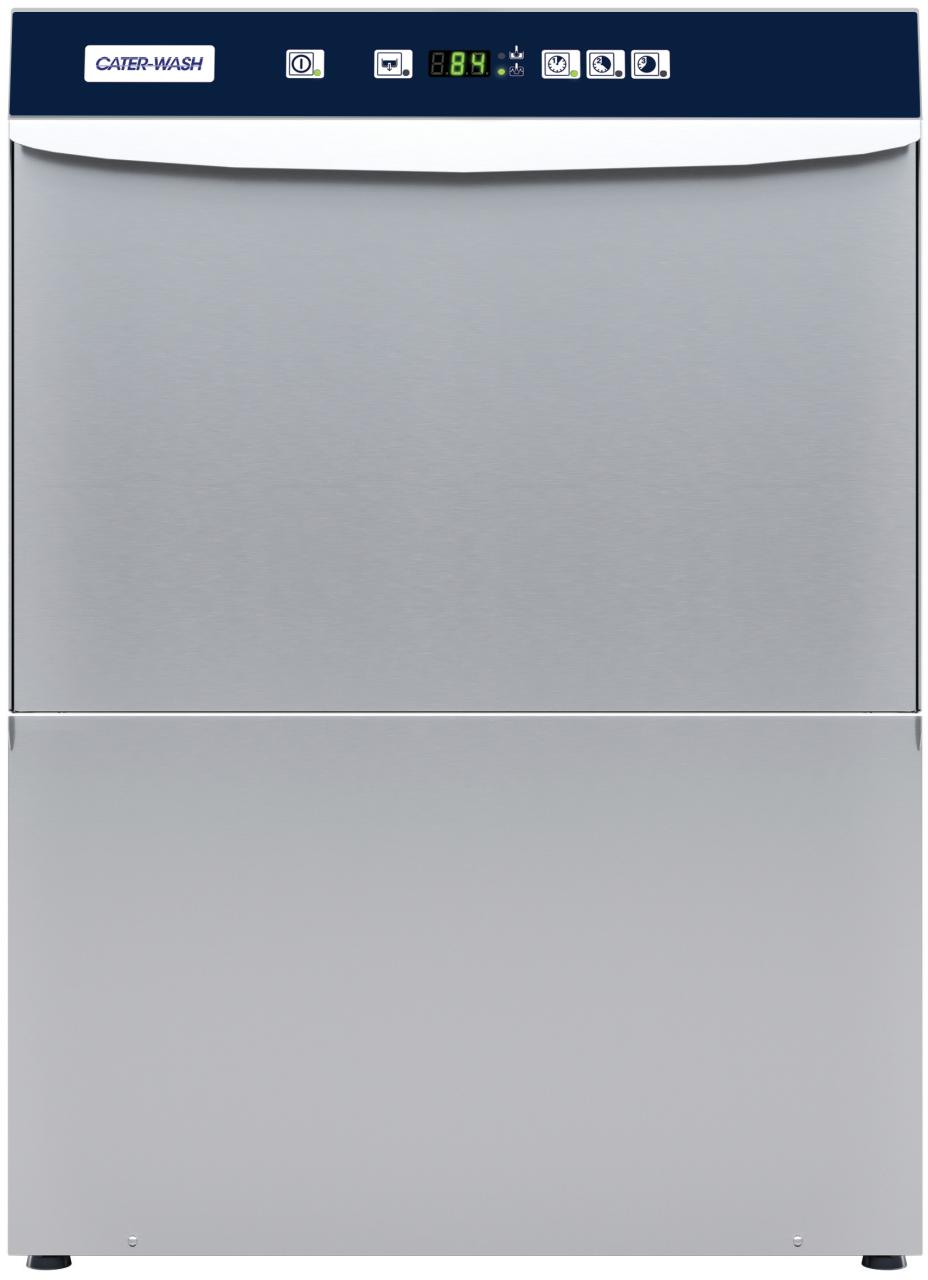

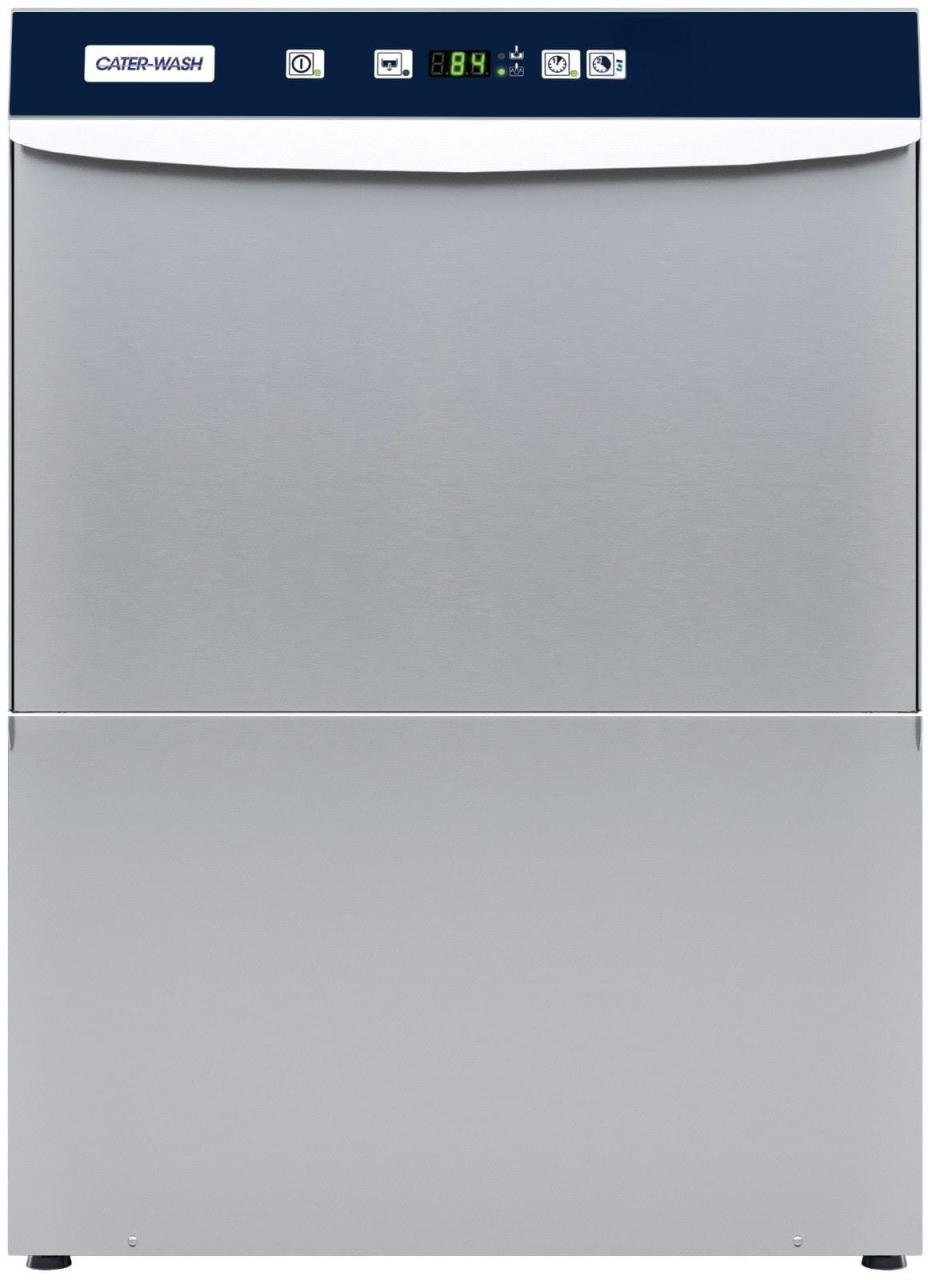

Bought in bulk & commissioned direct from one of Italy's top factories the CK1543 boasts a premium specification
& delivers truly unbeatable pound for pound performance
High grade corrosion resistant AISI304 stainless front & side panels, boiler with welding protection, wash tank filters & water tank for long term reliability.
Smooth easy clean surfaces throughout, wash tank with rounded corners.
Double skinned insulated door reduces heat loss & noise.
PVC water supply hose with metal connections resistant to high water pressure.
Built in drain pump, detergent & rinse aid dispensers for fast & easy installation & consistently perfect performance.
High efficiency air gap (CLASS A) in water inlet circuit to prevent water being siphoned back into the network as a result of sudden drop in mains pressure.
Fully automatic self cleaning cycle avoids the risk of bacteria proliferation.
The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.LOW RUNNING COSTS
Less water, less energy, less chemicals. Uses only 3 litres of clean hot water per cycle. HIGH PERFORMANCE
2 dishwashing cycles. 90/180 seconds.
720 dishes / 40 baskets per hour.
Accepts 18 x 240mm (Standard) Plates / 9 x 320mm plates. 330mm Door opening.
Atmospheric boiler combines with a powerful rinse booster pump for perfect rinse performance
Constant high pressure washing system & high water temp (84°C) maintained independent of incoming supply (min 0.5 / max 7 bar required).
4 second (variable) pause after washing & before rinsing ensures that no drops of unclean water can fall on clean items at the end of the rinsing cycle.
Simple digital control panel allows on-site personalization. Washing / rinse cycle times & temperatures, rinse aid / detergent quantities can all be precisely adjusted.
Fault auto-diagnosis system.
Soft start feature protects delicate items & increases water pump reliability.
Completely closed on the rear by cover plate.
Low noise level <70 dBA.
IPX4 water protection.FURTHER SPECIFICATIONS
Click here for line diagram.
Washing Temp: 55 - 65°C.
Wash Tank Capacity: 33 litres.
Boiler Capacity: 5.8 litres.
Rinse Temp: 84°C.
Hot Rinse Duration: 12 seconds.
Water Consumption Per Rinse: 3 litres.
Supplied 230V 1ph - can be switched on site to 400V 3ph. 50Hz.
Net Weight: 60kg.Supplied with 1x 500 x 500mm flat basket, 1x 500 x 500mm pegged basket & 1 x cutlery container
. Optional INSTALLATION PACK 1
. Optional INSTALLATION PACK 2
2 YEAR PARTS & LABOUR WARRANTY.* INSTALLATION IS WITHIN 1 METER OF EXISTING SERVICES
