All Images can be sent to us via our WhatsApp Phone on 07584 122381.

Please do not worry if you do not have all the answers to the above straight away. If you would like to organise an engineer site survey with us, please let your solutions advisor know.

* Denotes a required field

Personal Details

Name:*

Contact Number:*

Site address for install:*

Product:*

Dimensions and Weight:*

Waste

Where the waste is connected and how high is the waste?

Has it got a trap?

What is the size of waste? Does it getter bigger towards where it discharges?

Is a drain/waste pump required?

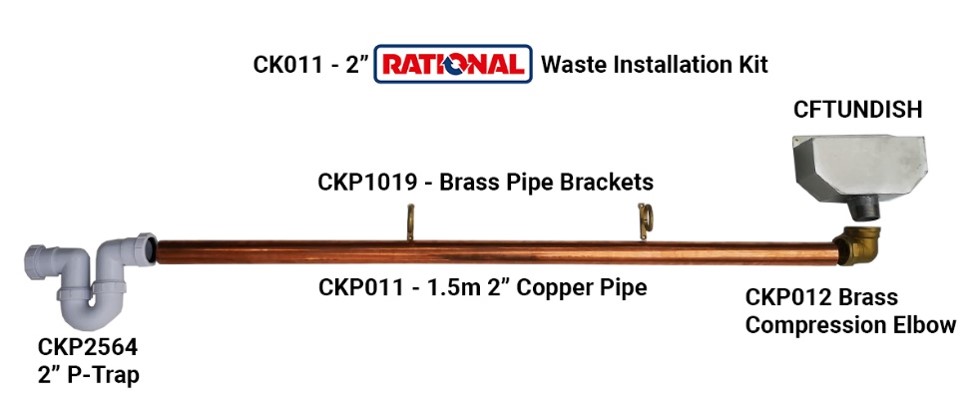

Example of a Rational Waste Kit that Caterkwik Offer. Click to open in a new tab

Extraction

What is the size of appliance being fitted?

Is the appliance gas or electric?

What is the total size of canopy?
( A minimum of 300mm overhang is required for gas appliances )

Do you have replacement air?

Do you have gas interlocking?

What is the height from the filter bank? (extraction).

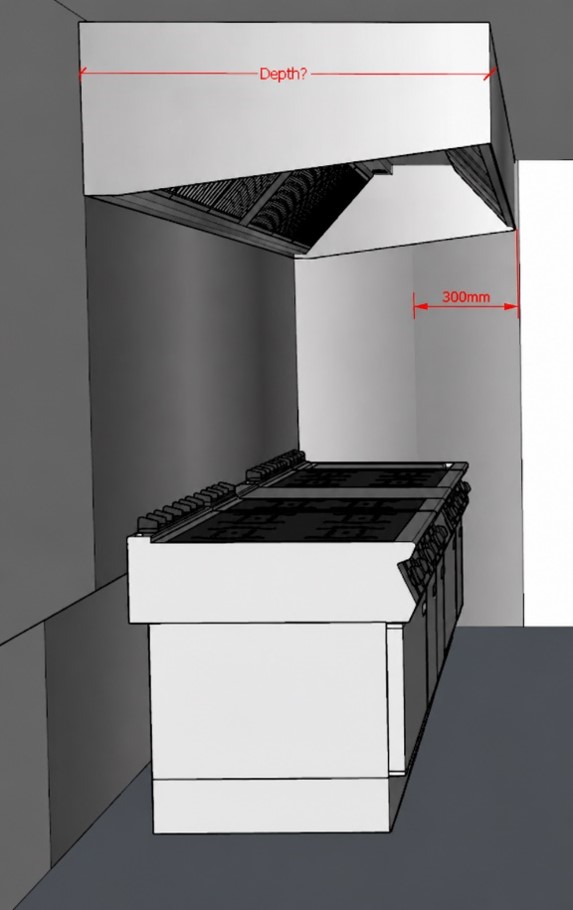

Example of depth dimentions. Click to open in a new tab

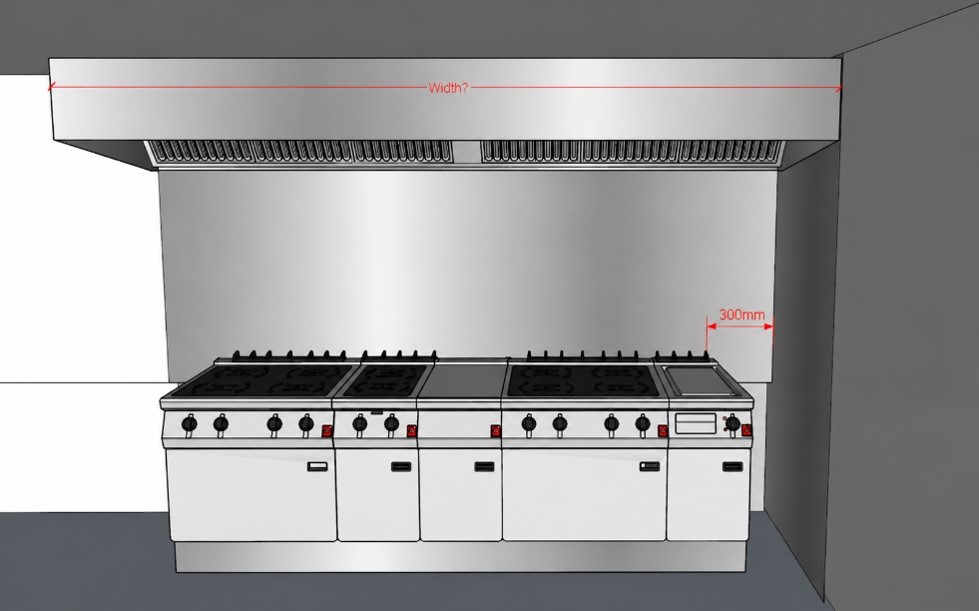

Example of width dimentions. Click to open in a new tab

Dimensions

Is the unit going to fit?

Where will the unit be located? Is a heatshield/splashguard required?
See some install do's and don'ts

What is next to the unit?

Water

Is it a hard or soft water area? Is a water treatment unit such as water softener or filter needed?

What size is the pipe connection?

Is the water hot or cold?

Access & Parking

What are the best access times for the engineer to complete the install?

Are there any parking or road restrictions?
For example pedestrianised areas

Are there any staircases, doorways, or lifts?

What are the corridor widths

Are there any site assistance?
For example positioning the unit.

Are RAMS (Risk Assessment Method Statement) required?

Do our engineers need specific PPE or are they required to attend an induction prior to work being started?

Power

Is the power gas or electric?
If gas, please send an image of the connection. Close up of valve.

Where is the machine going to be? Or what power is the existing machine connected to?

Do you have a single or 3 phase supply in your building, please provide a picture of your fuse board showing the breakers.

If you need further help or support speak to a member of our team on 01229 480001.

See some install do's and don'ts

Install do's and don'ts

Advise on things to look out for.

Do

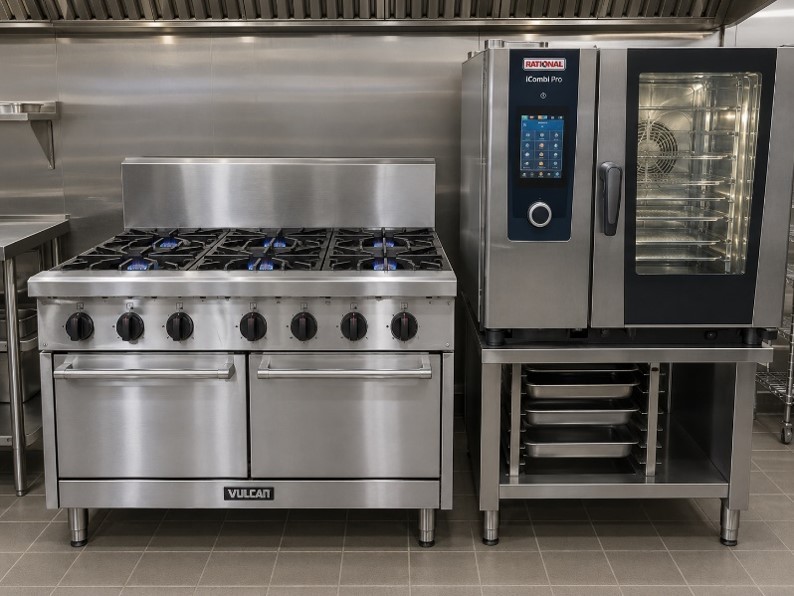

If you are putting an item such as a combi next to a 6-Burner Cooker we would highly recommend a heat shield.

Don't

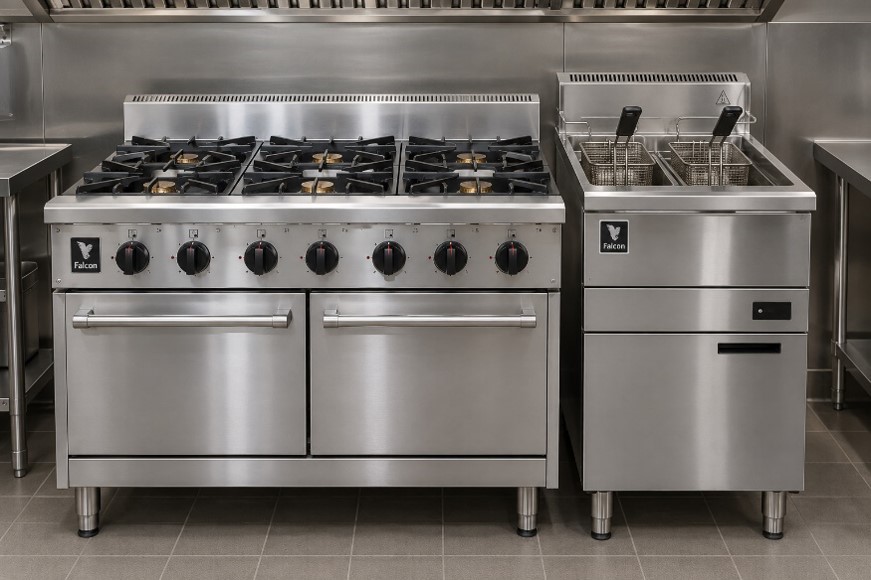

We do not recommend placing a fryer next to a 6-burner (or anything with an open flame) or at the end of a cookline. If you must place a fryer by an open flame, we would recommend a splashguard or small infill table.
