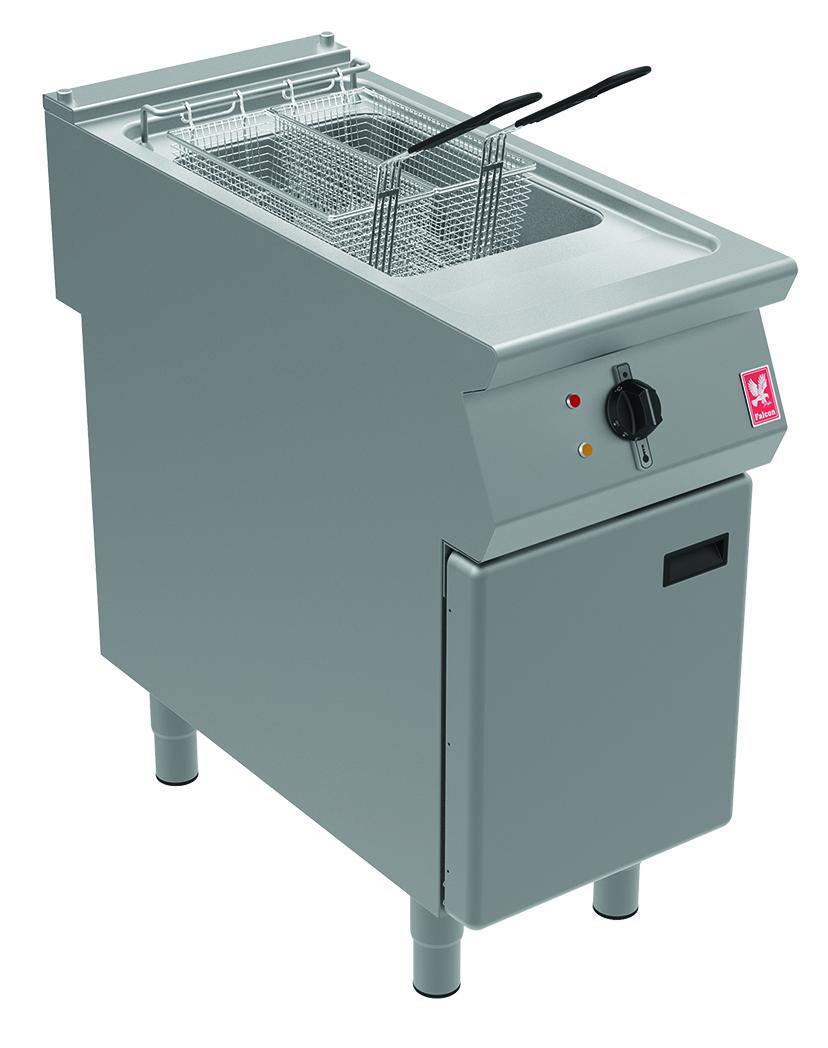

Falcon F900 E9341 Electric Single Pan Fryer

The E9341 combines high output and fast recovery time, the E9341 twin basket fryer ensures that you can cope with the busiest service periods. The tank holds 20 litres of oil, oil temperature is thermostatically-controlled and has a range of 130-190°C with safety thermostat fitted as standard to prevent overheating. Fish plate is supplied as standard. the unit is IPX5 rated and is supplied on adjustable legs, with optional castors.

The hob is constructed from 2mm 304 grade stainless steel and laser cut with right angled edges to allow the joining of units with virtually no gaps via the Dynamic Link System (DLS)*

Features:
• Pressed pan requires only 20 litres of oil, increases the efficiency of the oil.
• Temperature range of 130-190°C
• Ideal for frying a range of food.
• "Eco" setting reduces power consumption during pre-heating and can be used as fat melt mode.
• Two baskets supplied.
• Manual control system for ease of use.
• Fish plate supplied as standard.
• Safe swivel element for better pan cleaning access.
• Filter bucket situated directly below 1" drain valve.
• IPX5 rated.
• Supplied upon stainless steel adjustable feet.
• 2mm Thick 304 grade stainless steel hob.
• Laser cut to allow edge to edge joining of units.
• Stainless steel external panels with Scotch Brite finish.

Specifications:
• Electrical rating (kW) 19
• Electrical supply voltage 400V 3N~ 50/60 Hz
• Required electrical supply (A) 32
• Electrical current split (A) L1: 24.75, L2: 28.88, L3: 27.5
• Element rating (kW) 19
• Oil capacity (litres) 20
• Chip Output (kg/hr) 51
• Weight (kg) 62
• Packed weight (kg) 71
• Packed dimensions (w x d x h - mm) 490 x 1000 x 1015




*Patent pending, application no. GB 1511389.7

New

Dimensions:
W400 X D900 X H900mm


Weight: 62kg

• Engineer required for installation
• Product downloads available
• Requires hard-wiring - Flex may need to be purchased separate
• Standard 3 Phase Supply

Power Requirements:
Total Electrical Rating - 19kW

Electrical Supply -
400V 3N~50/60Hz

Special Requirements:
This unit requires hard-wiring by a trained engineer.
Please refer to manufacturers specification
