CED Drop In Frost Top (HT)

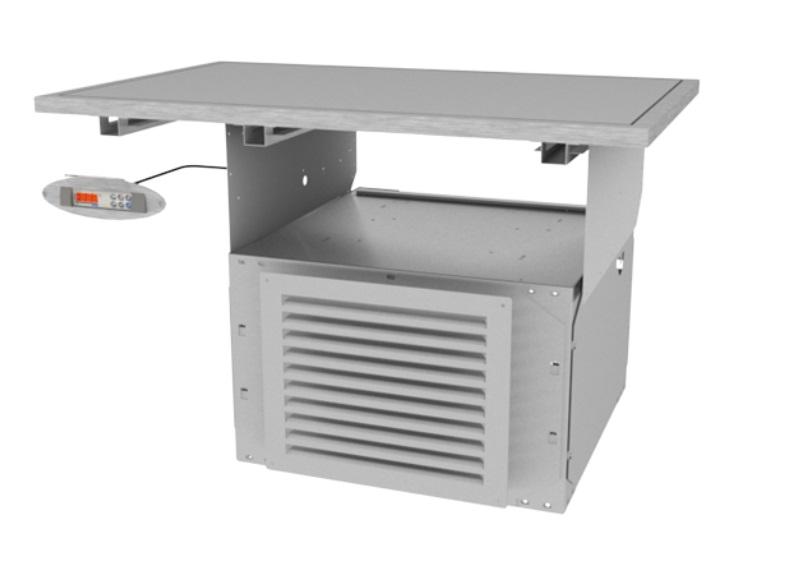

Frost Top Drop-In Refrigeration Unit

A seamless solution for commercial display refrigeration, with an underslung condensing unit, to keep your business tidy and maximising aesthetic performance.
This drop in unit sits just below the worktop, which can be a maximum of 20mm thick. It is ideal for buffet display of drinks, dessert portions, yoghurts, salads or garnishes.

Frost Top Drop-In Refrigeration Unit Features:

• Under Counter Frost Top with energy efficient chilled hydrocarbon refrigeration.
• Available in2/1, 3/1, 4/1, 5/1 & 6/1GN sizes.
• Locates beneath worktop surfaces of solid surface/non porous engineered stone/ sealed granite etc. (max 20mm thick)
• Suitable for use in freestanding, wall sited or island servery counters.
• Refrigeration condensing unit is housed in an underslung self contained cradle.
• Ideal for buffet display of drinks, dessert portions, yoghurt in pots, salads, garnishes & fillings.
• Designed for contact cooling, to slow the rate of pre-chilled displayed food temperature as it warms back up to ambient temperature.
• Forms a frosted worktop surface 30-45 minutes from operating, depending on worktop thickness.
• Frost top surfaces operates between -10°C to -12°C (max 25°C ambient 55% relative humidity).
• Features remote digital control panel mounted in fascia plate, for fitting in valance panel.
• Panel is supplied with 2m lead for connection to a single 13Amp socket (14A 230V 50 Hz).
• No requirement is needed for site drainage.
• Features 'tamper proof' temperature control facility.
• Frost top locates under worktop by support brackets supplied, to ensure full contact between frost top and work surface.
• A perimeter Stainless Steel box section frame is also required - carries frost top weight and is positioned under the worktop material.
• Standard refrigeration airflow - Air in to customer side/ air out to operator side.

Frost Top Drop-In Refrigeration Unit Capacity:

> FT2 - 2 x 1/1GN -
> FT3 - 3 x 1/1GN -
> FT4 - 4 x 1/1GN -
> FT5 - 5 x 1/1GN -
> FT6 - 6 x 1/1GN -

1 YEARS PARTS & LABOUR WARRANTY

New

Dimensions:
> FT2 - 2 x 1/1GN - 666 x 641 x 682mm
> FT3 - 3 x 1/1GN - 1016 x 641 x 682mm
> FT4 - 4 x 1/1GN - 1366 x 641 x 682mm
> FT5 - 5 x 1/1GN - 1716 x 641 x 682mm
> FT6 - 6 x 1/1GN - 2066 x 641 x 682mm

• 13A plug supplied

Power Requirements:
-13A, 230V:
> FT2 - 2 x 1/1GN - 0.47kW
> FT3 - 3 x 1/1GN - 0.47kW
> FT4 - 4 x 1/1GN - 0.47kW
> FT5 - 5 x 1/1GN - 0.71kW
> FT6 - 6 x 1/1GN - 0.71kW

Special Requirements:

Please refer to manufacturers specification
