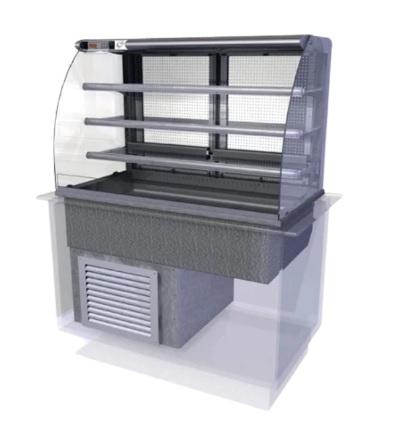

Designline Cold Multideck (HT) Assisted Service - Rear Doors

Designline Cold Multideck (HT) Assisted Service - Rear Doors:

Make your business stand out, with the Designline multideck which can be dropped into your custom counters. With an underslung condenser and integral water evaporation, all the machinery is neatly tucked away - so that you can focus on the sleek design of this unit.
With gastronorm compatibility incorporated into the design, you can efficiently swap out your chilled merchandise; to maximise your display opportunities. And to make sure that your machine always looks its best, the modular removable deck plate system makes your multideck easier than ever to keep clean.

GN pans sold separately.

Designline Cold Multideck (HT) Assisted Service - Rear Doors Features:

• Full height curved front & end glass sneeze guard profile.
• Deigned to compliment other Designline range units
• Cold multideck display features integral energy efficient chilled hydrocarbon refrigeration (HT)
• 3 tier toughened cold glass shelving, adjustable in both height and angle, for increased product display area
• Additional cold well area typically used as bottle storage
• Can achieve temperatures of 0°C to 5°C (max 27°C ambient 55% relative humidity)
• Features eye-level gantry mounted digital temperature display and control panel
• Illumination from diffused LED lighting in an elliptical profile gantry
• Integral automatic condensate water evaporation eliminates the need for site drainage
• Rear hinged double glazed doors offer easier restocking access and visual stock checking
• Superstructure in bright polished steel and aluminium profile
• Supplied with 2m lead for connection to a 13A socket
• 24-hour operation as standard
• Refrigeration condensing unit is housed in an underslung self contained cradle
• Modular removable deck plate system for easier cleaning and maintenance
• Features tamper proof temperature control facility
• 40mm tall point of sale display/ticket strips are fitted as standar

Designline Cold Multideck (HT) Assisted Service - Rear Doors Capacity & Weight:

> MDR2ASHT - 2 x 1/1GN - 155kg
> MDR3ASHT - 3 x 1/1GN - 175kg
> MDR4ASHT - 4 x 1/1GN - 217kg
> MDR5ASHT - 5 x 1/1GN - 244kg

Food(Drinks Area)
Still & carbonated, bottled, canned orcarton, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks.
Food(Deck Area)
Wrapped sandwiches, baguettes, rolls, barm cakes, salad, pasta, cheese snacks, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit.
*Unwrapped product displayed may require the provision of sneeze guard protection(by others)*

1 YEARS PARTS & LABOUR WARRANTY

New

Dimensions:
Dimensions L x W x H (mm)
> MDR2ASHT - 2 x 1/1GN - 825 x 660 x 750mm
> MDR3ASHT - 3 x 1/1GN - 1175 x 660 x 750mm
> MDR4ASHT - 4 x 1/1GN - 1525 x 660 x 750mm
> MDR5ASHT - 5 x 1/1GN - 1875 x 660 x 750mm

• 13A plug supplied

Power Requirements:
> MDR2ASHT - 2 x 1/1GN - 13A, 230V, 1.73kW
> MDR3ASHT - 3 x 1/1GN - 13A, 230V, 1.74kW
> MDR4ASHT - 4 x 1/1GN - 13A, 230V, 1.81kW
> MDR5ASHT - 5 x 1/1GN - 13A, 230V, 2.2kW

Special Requirements:

Please refer to manufacturers specification
