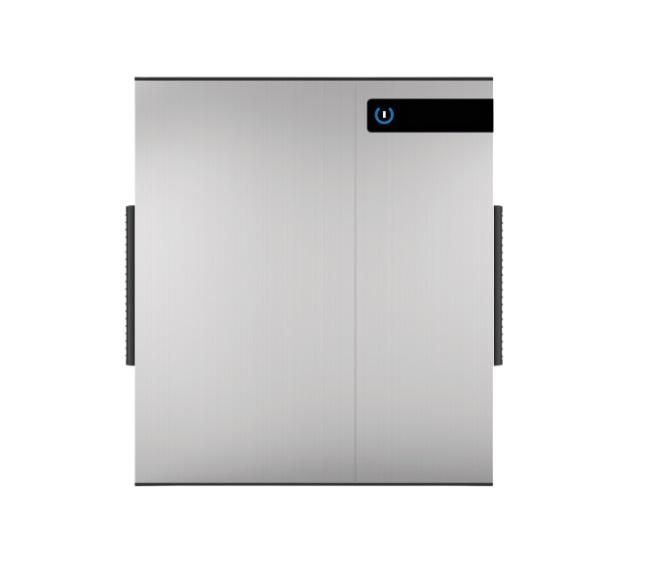

Prodis PC195A Slimline Modular Dice-Cube IceMaker High-Capacity

PC195A Modular Dice Ice Maker by Prodis

The Prodis PC195A Slimline Ice-Maker is a professional-grade modular ice system designed with exceptionally busy venues in mind.
Despite the high output of approximately 212kg of high quality ice cubes every 24 hours, the PC195A does not ask you to sacrifice your valuable back-bar floor space.

With a top-of-class 560mm width footprint, and by utilising the modular design of this machine, you can tailor reserves of ice to whatever site layout you have for optimal performance.
Constructed with AISI 304 Grade Stainless Steel and using the highly efficient R290 Refrigerant - this unit combines industrial resilience with eco-friendly performance, supporting the demand of the commercial environment.

Key Operational Unit Features

•High-Volume Output: Delivers a reliable production capacity of up to 212 kg per 24 hours, ensuring your venue is always fully stocked for peak service windows.
•Intelligent Connectivity: Fully compatible with the My Ice App via Bluetooth, providing remote diagnostics, real-time status monitoring, and seamless cycle management directly from your smartphone.
•Capacitive Touch Interface: Features a sleek, modern control panel equipped with integrated system diagnostics for highly intuitive operation.
•Precision Sensors: Incorporates advanced electronic sensors for the evaporator and water levels to guarantee consistent ice quality and protect vital internal components.

Efficiency & Construction Standards

•Eco-Friendly Refrigeration: Utilises R290 natural hydrocarbon refrigerant as standard, delivering exceptional cooling efficiency with a minimal environmental footprint.
•Premium Build Quality: Housed in a heavy-duty AISI 304 stainless steel exterior specifically designed to withstand the rigorous daily demands of commercial kitchens and bars.
•Optimised Resource Management: Operates with a highly efficient 950 W power consumption profile and an economical water consumption rate of 11.9 litres per hour.
•Space-Efficient Design: Features an ultra-compact footprint measuring 560 mm (W) x 620 mm (D) x 660 mm (H), allowing for flexible installation across space-constrained professional layouts.

Product Specification

• External dimensions(W x D x H mm) : 560 x 620 x 660mm
• Packaged dimensions(W x D x H mm) : 630 x 690 x 810mm
• Net/Gross Unit Weight: 68/80kg
• Production kg/24h @ 10°C air & water temperatures 212 kg
• Pieces per cycle: 204
• Ice Size: 22 x 24 x 22 (10g) mm
• Voltage: 220-240/50/1N
• Total power: 950 W
• Fuse: 16 A
• kWh/100kg: 12.4 kWh
• Litres per hour: 11.9 litres
• Refrigerant: R290
• Refrigerant charge: 150g
• Heat expelled: 2611 W
• Air volume: 850 m3/h
• Compressor Wattage 1661 W
• Ambient temperature range: 10°C to 43°C
• Water temperature range: 10°C to 32°C
• Water pressure: 1 Bar (14 psi) to 10 Bar (140 psi)
• Water conductivity: 10µS (Microsiemens) at 25°C ambient

2 YEARS PARTS & LABOUR WARRANTY AVAILABLE

It is important to maintain the cleanliness of the condenser and/or evaporator on your product. Improve efficiency and avoid expensive breakdowns by using our Condenser cleaner. Keep your product working better for longer.

New

Dimensions:
- External Product Dimensions (W x D x H) : 560 x 620 x 660mm
- Net/Gross Unit Weight: 68/80kg
- Packaged Product Dimensions (W x D x H) : 630 x 690 x 810mm


Your Packaged Dimensions can be really helpful for locating your new unit into the premises; be aware of stairs, doorways and tight corners

• Product downloads available

Power Requirements:
- Unit Voltage: 220-240/50/1N
- Total Unit Power: 950W
- 16A Fuse
- 12.4 kWh / 100kg

Special Requirements:

Please refer to manufacturers specification
