Prodis PC405A High-Capacity Modular IceMaker Dice/Cube 400KG/24H Pro Powerhouse

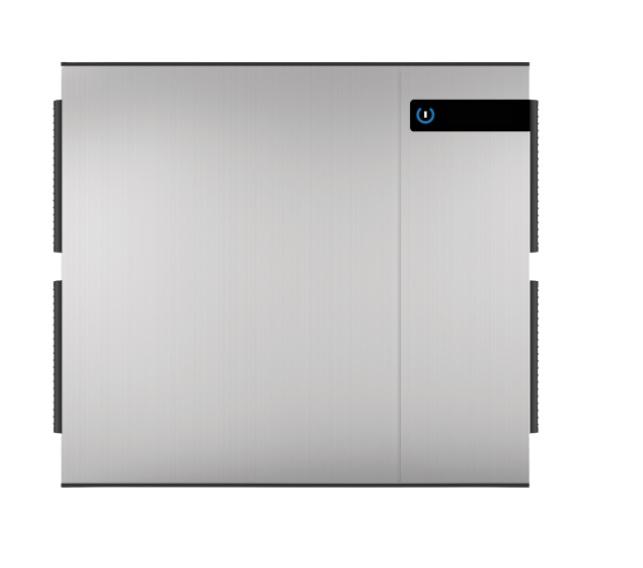

PC405A Modular Heavy-Duty Ice Maker Pro-Powerhouse by Prodis

The flagship model of the modular ice range engineered with high-volume venues in mind. This unit delivers a really impressive 400 kilograms of dice/cube ice per 24 hours of production.

The unit can be stacked to allow venues double the production of ice, without sacrificing on floor space. Pairs detail-oriented engineering with intelligent digital interfacing for user-friendly and intuitive operation.

The PC405A is designed to pair with Prodis' range of ice storage bins which can be paired very easily, due to the modular design of this ice-maker.
A great option for large or aspiring businesses, due to its flexibility.

Key Operational Unit Features

•High Volume Output: Delivers a highly reliable production capacity of up to 400kg per 24 hours, ensuring your venue is always stocked for peak service rushes.
•Scalable Productivity: Features Stackable Capability, allowing you to place two units in tandem to double your daily ice output without requiring any additional floor space.
•Intelligent Connectivity: Fully compatible with Bluetooth technology for seamless integration with the My Ice App, providing remote status monitoring and complete cycle management from your smartphone.
•Capacitive Touch Interface Features a sleek, modern control panel with integrated system diagnostics for intuitive operation and bespoke production scheduling.
•Modular Versatility Engineered for seamless integration with Prodis storage silos, offering a tailored ice solution that adapts perfectly to your site layout.

Efficiency & Construction Standards

•Eco-Friendly Refrigeration: Utilises R290 natural refrigerant as standard, ensuring exceptional cooling efficiency with a near-zero global warming potential and low environmental impact.
•Optimised Energy vs Heat Rejection: Operates with a 1620W electrical power consumption profile, while the heavy duty condenser safely rejects 6447W of heat into the ambient environment - ensuring installers can accurately size plant room extraction.
•Premium Construction: Housed in a heavy-duty AISI 304 grade Stainless Steel exterior, designed to withstand the rigorous, long-term demands of high-turnover commercial environments.
•Precision Sensors: Incorporates advanced electronic sensors for the evaporator and water levels to guarantee consistent ice quality and protect critical internal components.
•Resource Management: Achieves an efficient water consumption rate of 14.8 litres per hour, balancing the massive 400kg output with environmental responsibility.

Product Specification

DIMENSION & WEIGHT DATA
• External dimensions (W x D x H mm) 760 x 620 x 725
• Packaged dimensions (W x D x H mm) 830 x 690 x 900
• Net weight: 88 kg
• Gross weight: 106 kg
PRODUCTION & STORAGE DATA
• Production kg/24h @ 10°C air & water temperatures: 400 kg
• Pieces per cycle: 342
• Ice Size: 22 x 24 x 22 (10g) mm
ELECTRICAL & WATER DATA
• Voltage 220-240/50/1N
• Total power: 1620 W
• Fuse: 16 A (Type C/D motor-rated breaker recommended)
• kWh/100kg: 13.7 kWh
• Litres per hour: 15.1 litres
REFRIGERANT DATA
• Refrigerant R290
• Refrigerant charge 150g
•Heat expelled 4761 W
• Air volume: 1200 m3/h
• Compressor Wattage: 3141 W
• COP 1.94
OPERATING REQUIREMENTS
• Ambient temperature range 10°C to 43°C
• Water temperature range 10°C to 32°C
• Water pressure 1 Bar (14 psi) to 10 Bar (140 psi)
• Water conductivity 10?S (Microsiemens) at 25°C ambient

New

Dimensions:
- External dimensions (W x D x H mm) 760 x 620 x 725
- Packaged dimensions (W x D x H mm) 830 x 690 x 900
- Net weight 88 kg
- Gross weight 106 kg

Power Requirements:
- Voltage 220-240/50/1N
- Total power 1620 W
- Fuse 16 A (Type C/D motor-rated breaker recommended)
- kWh/100kg 13.7 kWh
- Litres per hour 15.1 litres

Special Requirements:

Please refer to manufacturers specification
