BRAND: Winterhalter
MPN: UC-M/G

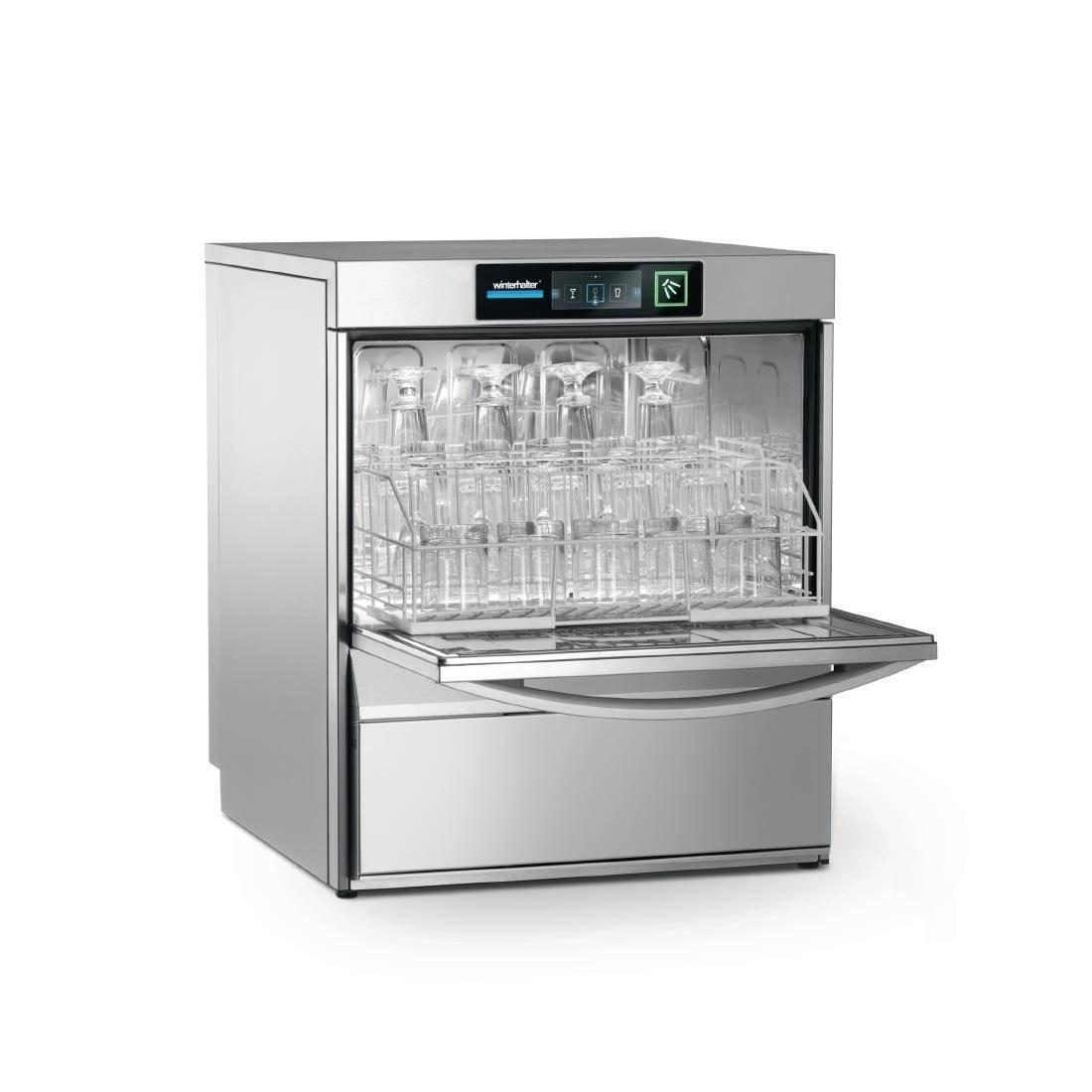

Winterhalters UC-M glasswasher is the go to machine if you are needing reliable and consistent results, able to take a 500mm baskets this machine can handle glasses for the busiest restaurants and catering establishments.
STANDARD FEATURES: • Start button with colour code and progress display.
• Touch screen.
• Elliptical wash fields, top and bottom.
• 3 standard programmes.
• ECO economy programmes, short programmes, silent programmes, intensive programmes, basic cleaning programme, descaling programme.
• Integrated detergent dosing and rinse aid devices.
• Integrated container for detergent and rinse aid.
• Extensive Hygiene features:
– Quadruple wash water filtration with clouding sensor (strainer, filter cylinder, pump screen, Mediamat.)
– Hygienic tank heater.
– Deep-drawn tank.
– Deep-drawn rack guide.
– Self-cleaning programme.
– Rinse temperature ensured by a thermostop on the boiler.
• Non pressurised boiler.
• Drain pump.
• Soft start - protecting delicate items.
• Closed plastic rear cover (spray guard IP X3.)
• Multiphasing (all machines can be used as 3-phase AC or 1-phase AC machines and require hardwiring.)
• Main power cable according to choice.
• Inlet and drain pipes.
• Large 500 x 500mm basket.
Additional Features: •
HEAT RECOVERY ENERGY MODEL: Intelligent use of energy: as an option, the UC can be fitted with »Energy« integrated circulating air heat recovery. This uses the energy from the hot steam to pre-heat the cold inlet water. This significantly reduces energy consumption, lowers operating costs and ensures that hardly any steam escapes when the machine is opened.
•
COOL RINSE: Cool rinsing allows your glassware enter back into service straight after washing -reducing turn around times and increasing efficiency.
•
THERMAL DISINFECTION: The ability to protect your customers, glasses and machine from harmful bacteria. Thermal disinfection options allow the machine to run a thorough 15 minute clean, with 3 minutes at a constant 73°C in line with HTM2030 regulations.
•
INTEGRATED SOFTENER: For better wash results and to protect the machine: Every UC has an optional integrated softener. It is built into the machine to save space and provides continuous soft water. This way, detergent and rinse aid can have an optimum effect, which significantly
reduces limescale deposits in the machine.
Specification: • Cycles: 3 as standard (option for additional 1 x cold rinse, 1 x thermal disinfection.)
• Racks per hour: 48 (77 on short cycle.)
• Clearance: 309mm.
• Tank capacity: 15.3 litres.
• Water consumption per rinse cycle: ~2.0ltrs.
• Max inlet temprature: 60°C as standard/ 35°C for Excellence.
• Water pressure required: 0.8-6 bar as standard. 1.4 bar for Excellence.
1 YEARS PARTS AND LABOUR WARRANTY
