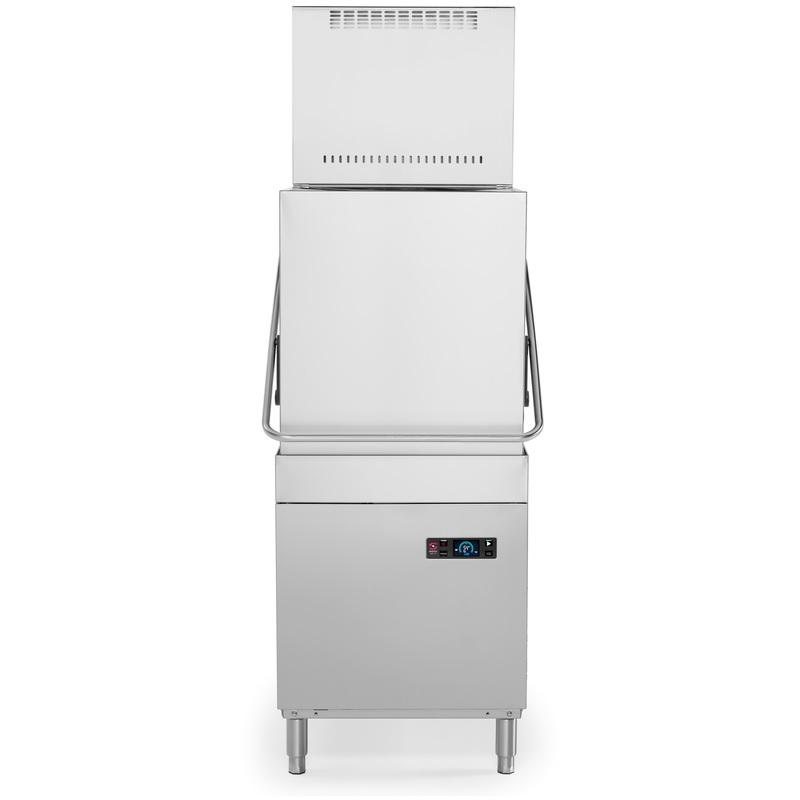

Sammic Ultra UX-120BCDV Commercial Passthrough Dishwasher with an Energy Saving Device & Integrated Softener

Sammic Ultra UX-120BCDV Commercial Passthrough dishwasher with an integrated Steam condenser and water softener with a great height of up to 430 mm & 6 wash cycles with thermal cycle delay option included. Suitable for washing trays, plates, cups, glasses & cutlery.

Need the whole package for your warewashing station? Then look no further and view the vast range of warewashing equipment we have to offer including a variety of different taps, dishwasher tabling options and spray arms:



Features:
• A double skinned hood ensures thermal & acoustic insulation & energy saving.
• Professional washing with double system of rotating wash & rinse arms top & bottom.
• High performance moisture resistant, electronic control panel with wash & rinse temperature display.
• Manufactured from catering grade AISI 304 2B stainless steel & incorporating top quality components.
• The inside of the machine features rounded corners, the elimination of angles avoiding the accumulation of dirt.
• Removable stainless steel rack holders ensure even distribution of wash water without dead zones.
• Precision positioned water jets guarantee optimum washing result for even the most stubbornly stained ware. Easy to assemble, boltless rinse spray arms.
• A double filter system provides effective wash pump protection that is easily removed (for maintenance & cleaning) & replaced, without tools.
• Magnetic hood micro-switch.
• Tank & boiler temperature display.
• Complete with stainless steel top-of-tank filter set.
• Wash tank & rinse boiler temperature adjustment & a thermal cycle delay option, guaranteeing a minimum final rinse temperature of 85ºC.

Specifications:
• Basket Dimensions: 500 x 500mm.
• Maximum Glass Height: 400mm.
• Cycles: 3, Cycle Length: 60/120/180secs.
• Production baskets/hour: 60/30/20.
• Boiler Capacity: 12litres.
• Wash Tank Capacity: 25 litres.
• Water use: 2.8 litres per cycle.
• Average annual running cost: £2,779.69 (September 2024).
• Includes variable detergent doser, rinse aid doser, steam condenser, water softener, 1 open basket, 1 mixed basket, 1 cutlery basket & adjustable feet.
• Weight: 116kg.

2 Year parts and labour warranty

INSTALLATION IS WITHIN 1M OF SUITABLE EXISTING SERVICES.
Do I need a water softener for my Glasswasher?
If you find this product cheaper elsewhere, let us know & we will beat it!!

New

Dimensions:
W760 x D860 x H2050 inc condenser

Base Dimensions:
W 650mm x D 755mm

Power Requirements:
1303377 - Single Phase
8.5kW
230V, 50 Hz, 38.6 A
REQUIRES HARDWIRING


1303376 - Three Phase
10kW
400 V, 50 Hz,16 A
REQUIRES HARDWIRING

Boiler element: 9000 W
Tank element: 3000 W
Wash pump power: 1500 W
Total loading: 10500 W

Special Requirements:

Please refer to manufacturers specification
