Commercial Gas Hoses

High specification, heavy duty commercial gas hoses with restraining cables.


Beware of cheap inferior quality hoses.


BTU Capacities
Referring to the chart below, the BTU Capacities of Both Caterquip & Dormont gas hoses are shown.
These capacities were determined under the test conditions specified in BS669 part 2 1997.
They are for braided & unbraided gas hoses fitted with standard quick-disconnect (QD) fittings or Safety Quik™.





Correct gas hose installation
When installing your commercial gas hose, positioning is crucial for both the integrity and function of the hose.
• The quick-disconnect (QD) end must be at the supply end.
• Allow the hose to form 1 natural loop. There should be no sharp bends, crimps or twists.
• Ensure the hose is not touching the floor - if this is an issue, you should consider a shorter length hose.
• The restraining chain should be slightly shorter than the hose. Doing so correctly prevents over-extending of the gas hose.
The restrainer should NOT be attached to either the gas supply or gas hose itself. It should be securely anchored in the wall.

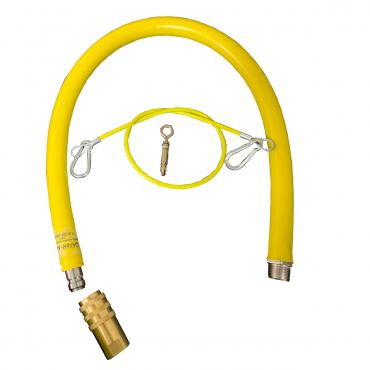

1m ½" commercial gas hose.

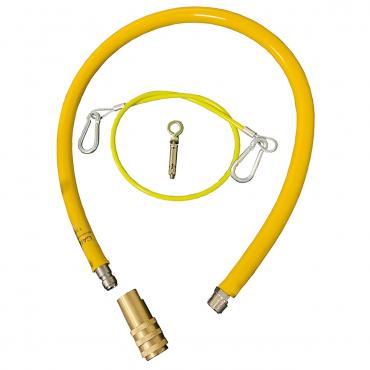

1m ¾" commercial gas hose.

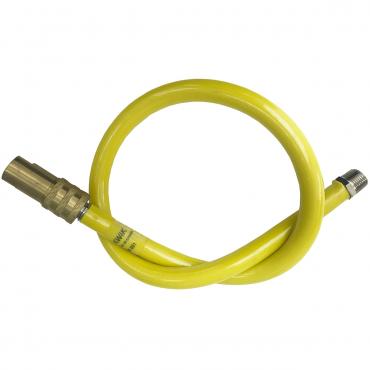

1.5m ½" commercial gas hose.

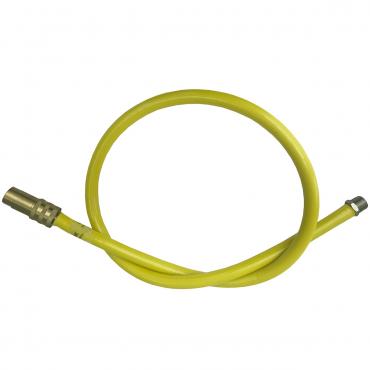

1.5m ¾" commercial gas hose.
