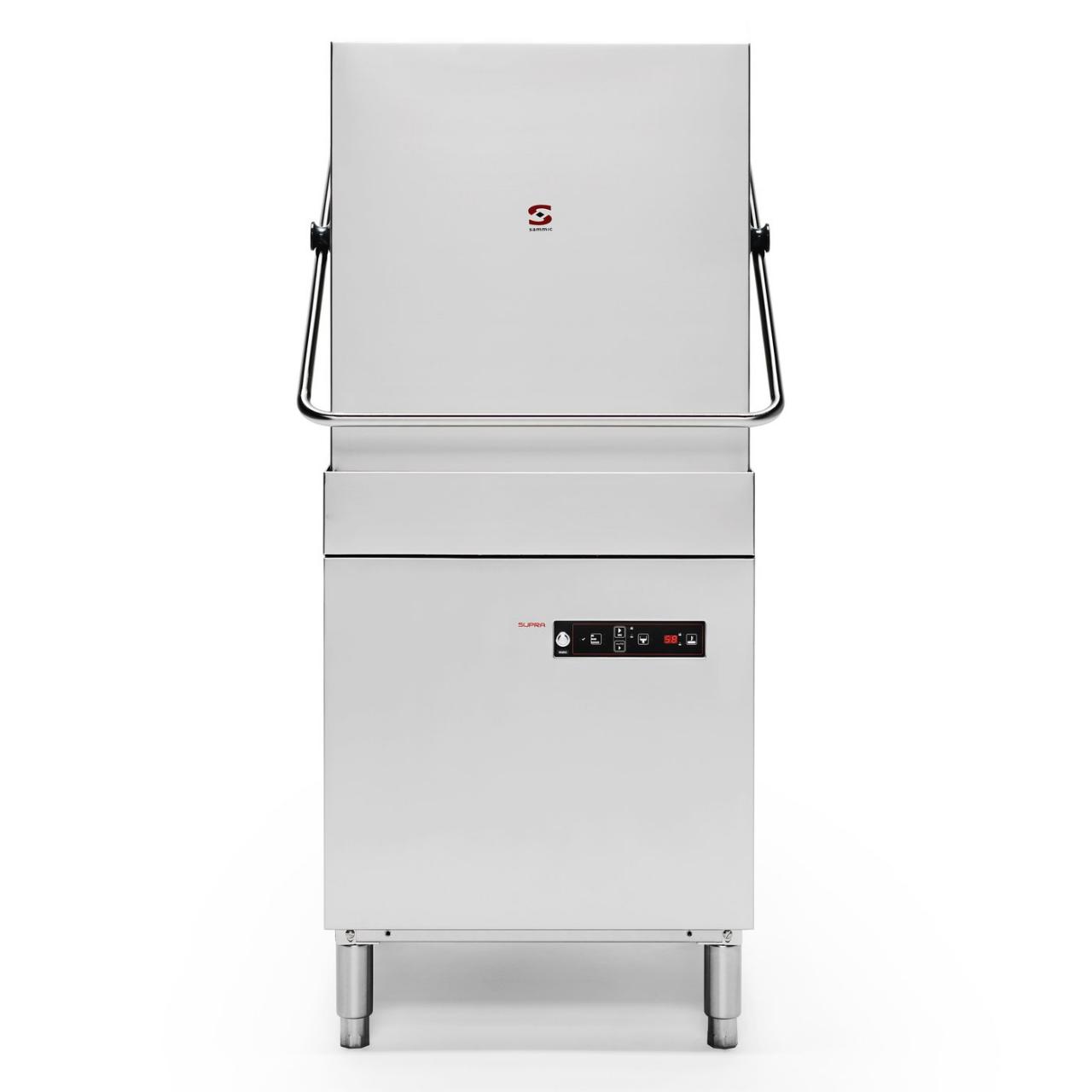

Sammic SUPRA S-120V Commercial Passthrough Dishwasher - With Steam Condenser - Discontinued

Sammic S-120V SUPRA Range Passthrough Dishwasher with Steam Condenser - Commercial pass-through dishwasher with a max. loading height of up to 400 mm and 3 wash cycles with thermal cycle delay option included. A stainless steel, top of tank filter system is also included as standard. Steam condensing unit with heat recovery system, the machine aspires the steam from hot water inside the tank & uses the energy to heat the incoming water.

Need the whole package for your warewashing station? Then look no further and view the vast range of warewashing equipment we have to offer including a variety of different taps, dishwasher tabling options and spray arms:




Features:
• A double skinned hood ensures thermal & acoustic insulation & energy saving.
• Professional washing with double system of rotating wash & rinse arms top & bottom.
• High performance moisture resistant, electronic control panel with wash & rinse temperature display.
• Manufactured from catering grade AISI 304 2B stainless steel & incorporating top quality components.
• The inside of the machine features rounded corners, the elimination of angles avoiding the accumulation of dirt.
• Removable stainless steel rack holders ensure even distribution of wash water without dead zones.
• Precision positioned water jets guarantee optimum washing result for even the most stubbornly stained ware. Easy to assemble, boltless rinse spray arms.
• A double filter system provides effective wash pump protection that is easily removed (for maintenance & cleaning) & replaced, without tools.
• Magnetic hood micro-switch.
• Tank & boiler temperature display.
• Complete with stainless steel top-of-tank filter set.
• Wash tank & rinse boiler temperature adjustment & a thermal cycle delay option, guaranteeing a minimum final rinse temperature of 85°C.
• Includes variable detergent doser, rinse aid doser, 1 open basket, 1 mixed basket, 1 cutlery basket & adjustable feet.

Specifications:
• Basket Dimensions: 500 x 500mm.
• Maximum Glass Height: 400mm.
• Cycles: 3, Cycle Length: 60/120/180secs.
• Production baskets/hour: 60/30/20.
• Boiler Capacity: 10 litres.
• Wash Tank Capacity: 40litres.
• Water Consumption/cycle: 3.5litres.
• Weight: 129kg.

2 YEAR PARTS & LABOUR WARRANTY

Optional Equipment:
• Drain pump (model B 1302345, 1302359).
• booster pump .
• Constant rinse (model C 1302349, 1302362).

PLEASE NOTE: This machine IS NOT fitted with a BREAK TANK. An external breaktank is required for category 5 protection.
INSTALLATION IS WITHIN 1M OF SUITABLE EXISTING SERVICES.
This is a gravity waste unit.
Do I need drain pump or gravity waste?
Do I need a water softener for my Glasswasher?
If you find this product cheaper elsewhere, let us know & we will beat it!!

New

Dimensions:
W640 x D756 x H1920 / 1468mm

Power Requirements:
400v/50hz/3~

Special Requirements:
3 phase, requires hard-wiring.
To be installed by a qualified technician.
Please refer to manufacturers specification
