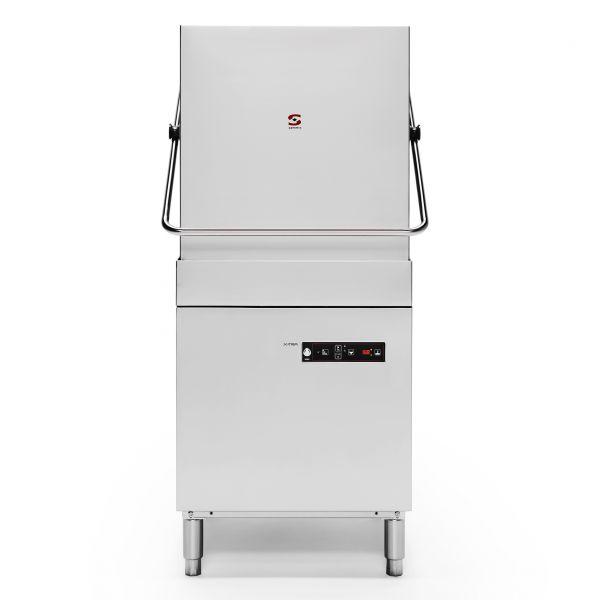

Sammic X-TRA X-120V Commercial Passthrough Dishwasher - Discontinued

Sammic X-120V X-TRA Range Passthrough Dishwasher - Commercial pass-through dishwasher with a useful height of up to 400mm & 3 wash cycles with thermal cycle delay option included.

Need the whole package for your warewashing station? Then look no further and view the vast range of warewashing equipment we have to offer including a variety of different taps, dishwasher tabling options and spray arms:




Features:
• 3KW wash tank, 9KW boiler.
• Steam condenser unit.
• In line and corner situations, suitable for washing, trays, cutlery, glasses, cups and plates.
• Hood operated, auto cycle start.
• Double system of rotating wash and rinse arms top and bottom.
• 3 cycles, cycle duration: 120 / 180 / 210 seconds.
• AISI 304 2B stainless steel and incorporating top quality components.
• Round corners inside the machine to prevent dirt collecting as easier to clean.
• Removable stainless steel rack holders ensure even distribution of wash water without dead zones.
• Stainless steel wire rack support and guard.
• Double filter system.
• Rinse aid dosing equipment.
• Thermal cycle delay option, guaranteeing a minimum final rinse temperature of 85°C.
• Adjustable washing tank and boiler temperature and security in the boiler.
• A stainless steel, top of tank filter system is also included as standard.
• Adjustable feet for levelling.
• A magnetic micro-switch stops the wash cycle.
• Thermal cycle delay option, guaranteeing a minimum final rinse temperature of 85°C for each and every rinse cycle.
• Detergent dosing equipment, rinse aid doser, 1 open basket, 1 mixed basket, 1 cutlery basket included.

Specifications:
• Boiler capacity: 10Ltr.
• Wash tank capacity: 40Ltr.
• Water consumption/cycle: 3.5Ltr.
• Thermal lock guarantees a correct sanitation.
• Stainless steel, sturdy and resistant washing arms. Resistant to chemical corrosion.
• Net weight: 115Kg.

2 YEAR PARTS & LABOUR WARRANTY

Optional Features:
• Steam condensing unit with heat recovery system - Thanks to Sammic's innovative HRS system, the machine aspires the steam from hot water inside the tank & uses the energy to heat the incoming water. This reduces energy costs by 30% & improves air quality in the workplace (V 1302247, 1302251, 1302255)).
• Drain waste (B 1302265, 1302279).
• Booster kit. (2319400)
• Constance rinse temperature system with booster pump and break tank (C 1302269, 1302282).
• Available single phase (standard) or three phase.

INSTALLATION NEEDS TO BE WITHIN 1 METRE OF SUITABLE EXISTING SERVICES.
PLEASE NOTE: This machine IS NOT fitted with a BREAK TANK. An external break tank is required for category 5 protection.
This is a gravity waste unit.
Do I need drain pump or gravity waste?
Do I need a water softener for my Glasswasher?
If you find this product cheaper elsewhere, let us know & we will beat it!!

New

Dimensions:
W640 x D756 x H1920 / 1468mm.

Power Requirements:
400V/50Hz Three phase
Hard wire required

Special Requirements:
Requires hard-wiring. To be installed by a qualified technician.

Please refer to manufacturers specification
